PE McGibbon School – LEED Silver

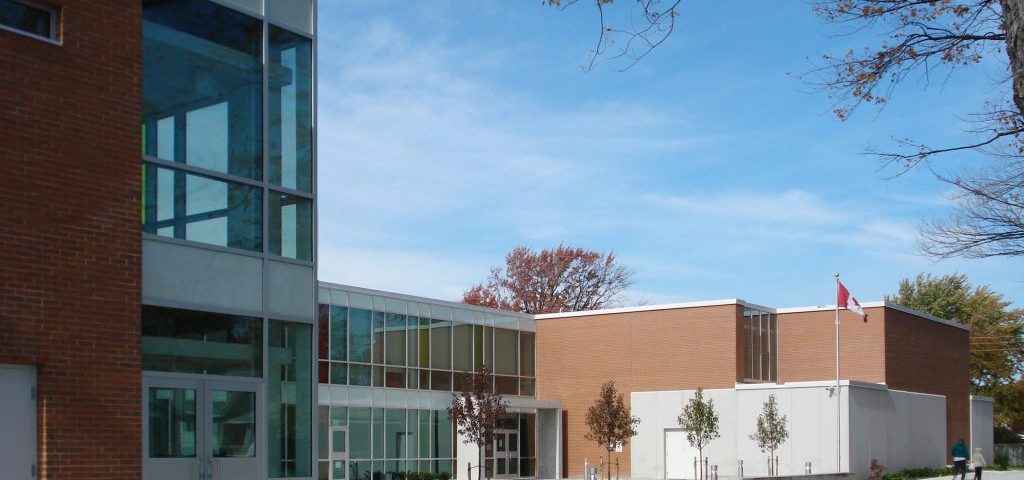

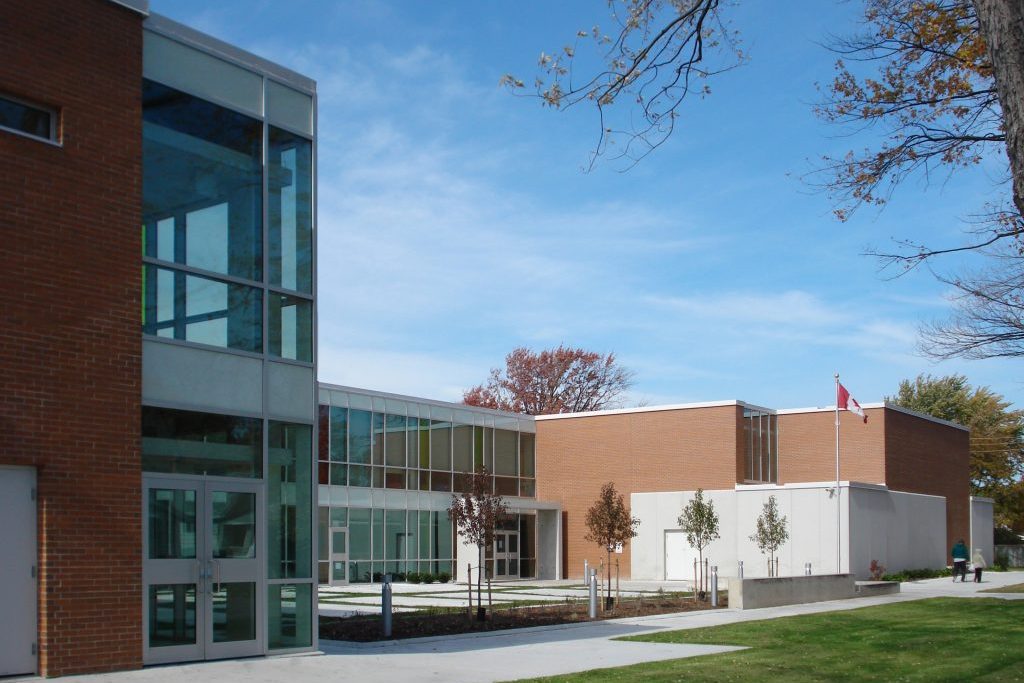

PE McGibbon School
This 4,500 m² two-storey school is one of the largest elementary schools in the Lambton Kent District School Board. The mechanical systems feature water source heat pumps for heating and cooling. A Dedicated Outside Air System (DOAS) provides ventilation for the school and includes an energy recovery wheel. Heating systems are designed to provide low temperature return water in order to achieve peak efficiency from the condensing boiler plant. Air distribution systems were designed to achieve optimal ventilation efficiency and demand based ventilation control systems were provided for areas with highly variable occupancy.

Value:

$8.8 Million

Size:

4,500 m2

Location:

Sarnia, ON

Client:

J.P. Thomson

Date:

2010
